LF230 LiFePO4 battery 3.2V 230Ah Brand New Grade A with QR Code
LF230 LiFePO4 battery 3.2V 230Ah Brand New Grade A with QR Code
Couldn't load pickup availability
| Brand | blackcell |
| Battery Type | LiFePO4 |
| Voltage | 3.2V |
| Capacity | 230ah |
| Internal resistance | ≤0.3mΩ |
| Charge/Discharge current | 1C（A） |
| Max Charge/Discharge current(60s) | 2C (A) |
| Charge/Discharge Cut-off Voltage | 3.65V/2.5V |

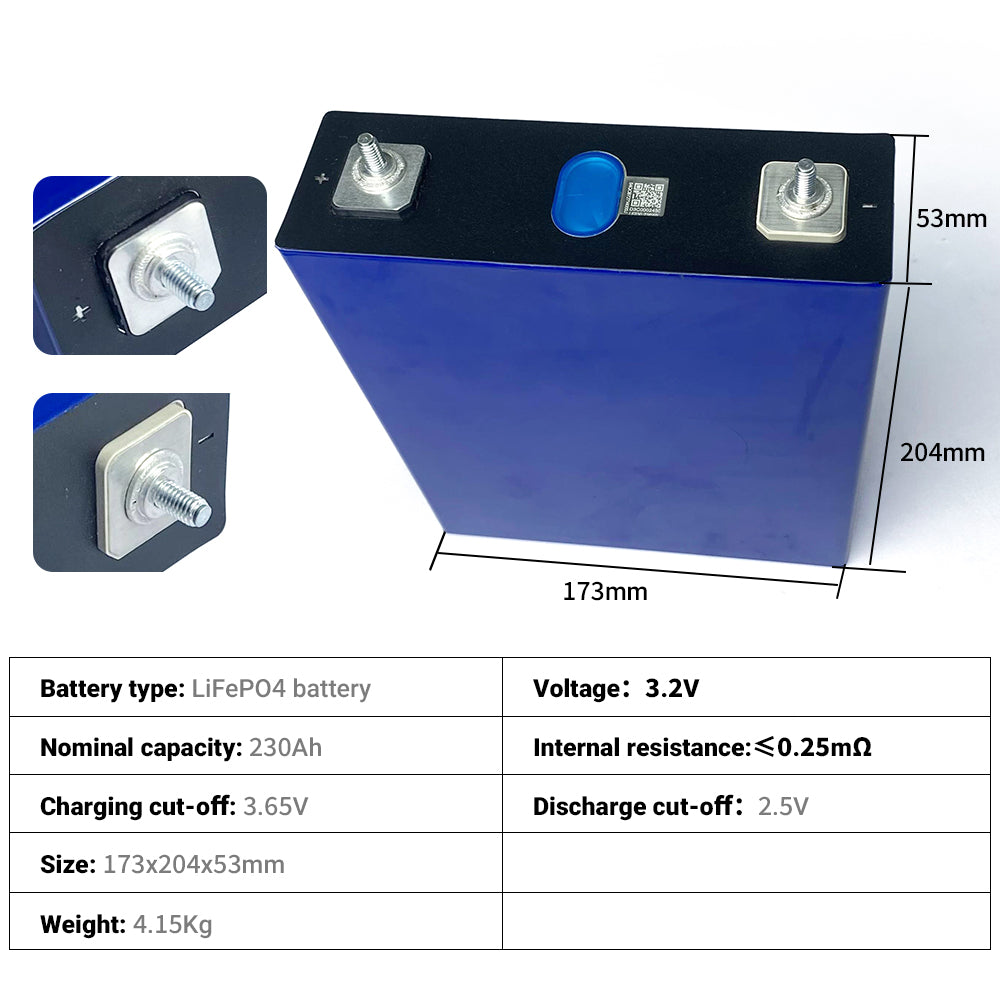

| Dimension |
W173.93±0.5mm T53.85±0.15mm H207.3±0.5mm |
| Tab distance | 123.0±0.3mmm |
| Weight | 4110±100g |
| Charging Temperature | 0~60℃ |
| Discharging Temperature | -30~60℃ |
| Cycle Life | ≤3500 cycles |
| Storage Temperature |
-20~45℃ （Within 1 month) 0~35 ℃ （Within 1 year) Storage |
| Humidity | ＜95% |
| Warranty | 5 years |
Features:
1. Highly automated production equipment to ensure the consistency of the battery.

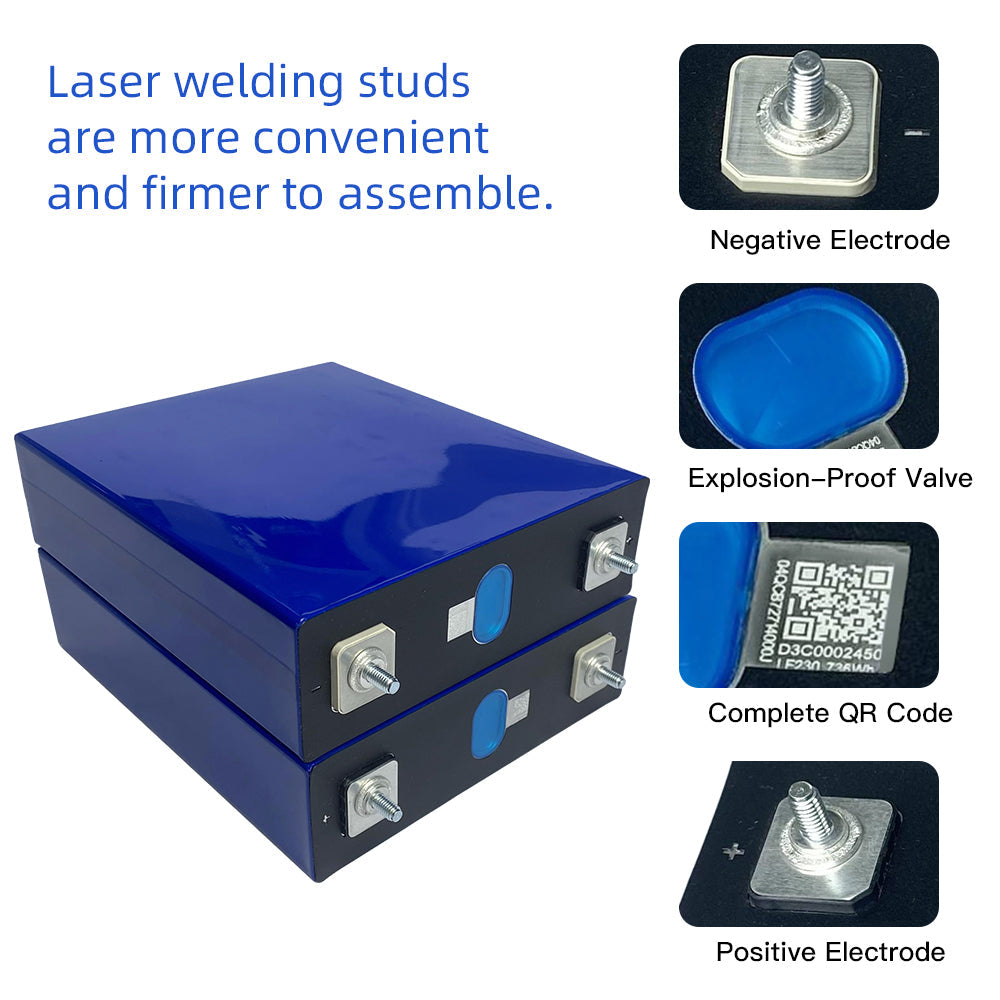

2. Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance.
3. Low internal resistance, high discharge rate and stable discharge platform.
4. Green and environmental protection, ISO14000 certification, the products comply with GB and UN standards, and comply with ROHS.
5. Long cycle life.
For engine start batteries, e-bikes/motorcycles/scooters, golf carts/trolleys, power tools...solar and wind power systems, motorhomes, caravans
notes!

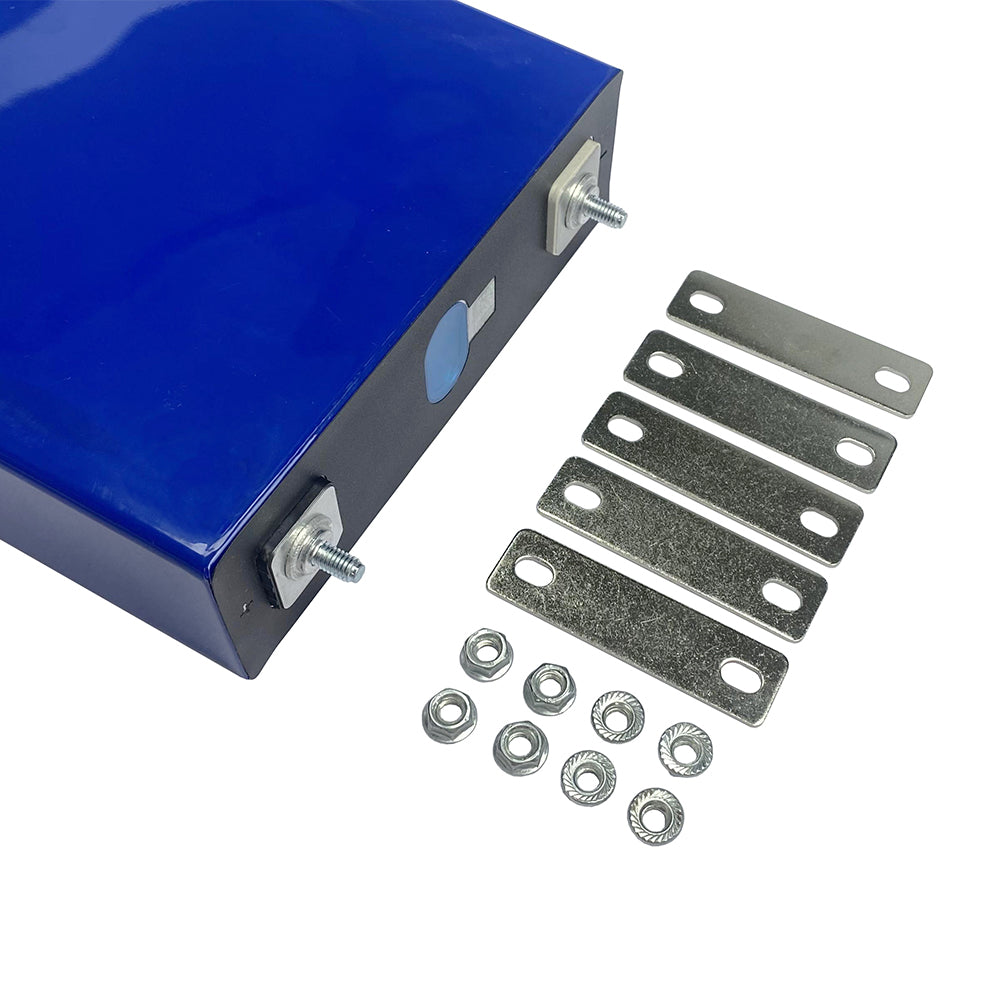

1. A Cell will provide 1 busbar, 2 nuts, 2 spacers for free. (For example, 4 batteries will come with 4 bus bars, 8 crew caps and 8 spacers.) 2. Each battery should be used under strict monitoring and protection by BMS. 3. Be sure to charge the battery to full voltage before using it for the first time. | Frequently Asked Questions: A guide to charging lithium iron phosphate batteries. 4. We will match (capacity, voltage, resistance) all batteries before shipment. 5. The battery is suitable for experienced DIY enthusiasts.
